CODA SPORT

OVERVIEW


CODA SPORT

Price¥65,000(本体価格)

  • Size 14",16" (Femme) 15", 17", 19", 21"(Black Ice only)
  • Frame Size Specific Design Doublebutted chromoly frame
  • Fork Chromoly unicrown
  • Rear Derailleur Shimano Acera M360 SGS
  • Crank Shimano FC-TY501
  • Wheels Alex ID-19 double wall alloy rims with GSW sidewall, 32H
  • Femme

SPECIFICATIONS


Model CODA SPORT
Price ¥65,000
Frame Size Specific Design Doublebutted chromoly frame, extended head tube with reinforced collars, double tapered cromo stays, forged dropouts and fender/rack eyelets
Fork Chromoly unicrown, bulge butted steerer, low-rider carrier mounts and forged dropouts with fender eyelets
Headset Threadless, 1 1/8”
Wheels Alex ID-19 double wall alloy rims with GSW sidewall, 32H, Formula alloy hubs with QR and 14g stainless steel spokes
Tires Vittoria Randonneur with Double Shielding puncture protection and reflective sidewalls, 700 x 32c
Derailleurs Shimano Acera M360 SGS rear and FD-TY710 bottom pull front
Shift levers Shimano RapidFire Plus SL-M310, 24-speed
Chain KMC Z7
Cassette Shimano HG41 8-speed, 11-32T
Crankset Shimano FC-TY501, 48/38/28T, 170mm
BB Set FSA sealed cartridge, 68 x 110.5mm
Pedals Platform style, steel cage/resin body
Brakeset Tektro 855AL alloy linear-pull brakes with front power modulator and Tektro brake levers
Handlebar Jamis Urban bar, 6061T-6aluminum, 25.4x10?sweepx580mm
Stem Jamis Road, 3D forged 6061 alloy, 25.4 x 10° x90mm (14/16,15/17), 110mm(19/21)
Grips Anatomic double density kraton
Seat Post Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin
Saddle Jamis Touring with SL cover / Jamis Touring Femme with SL top
Sizes 14",16",15",17",19",21"(Black Ice only)

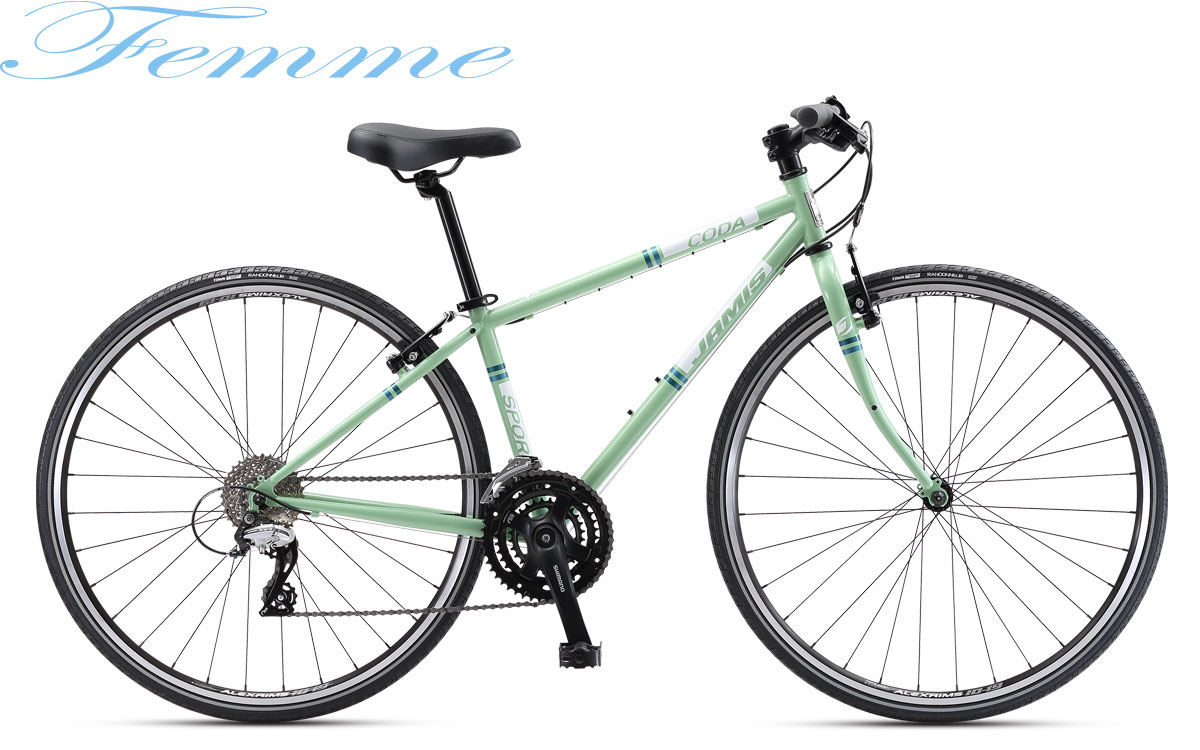

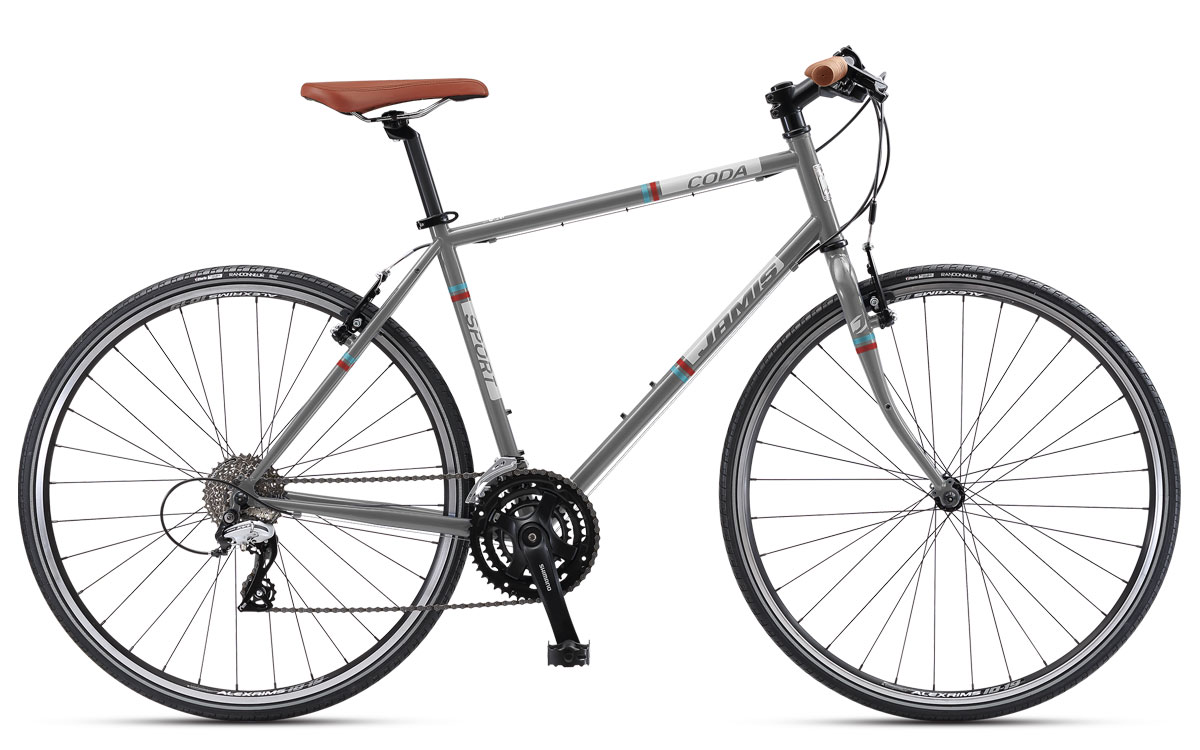

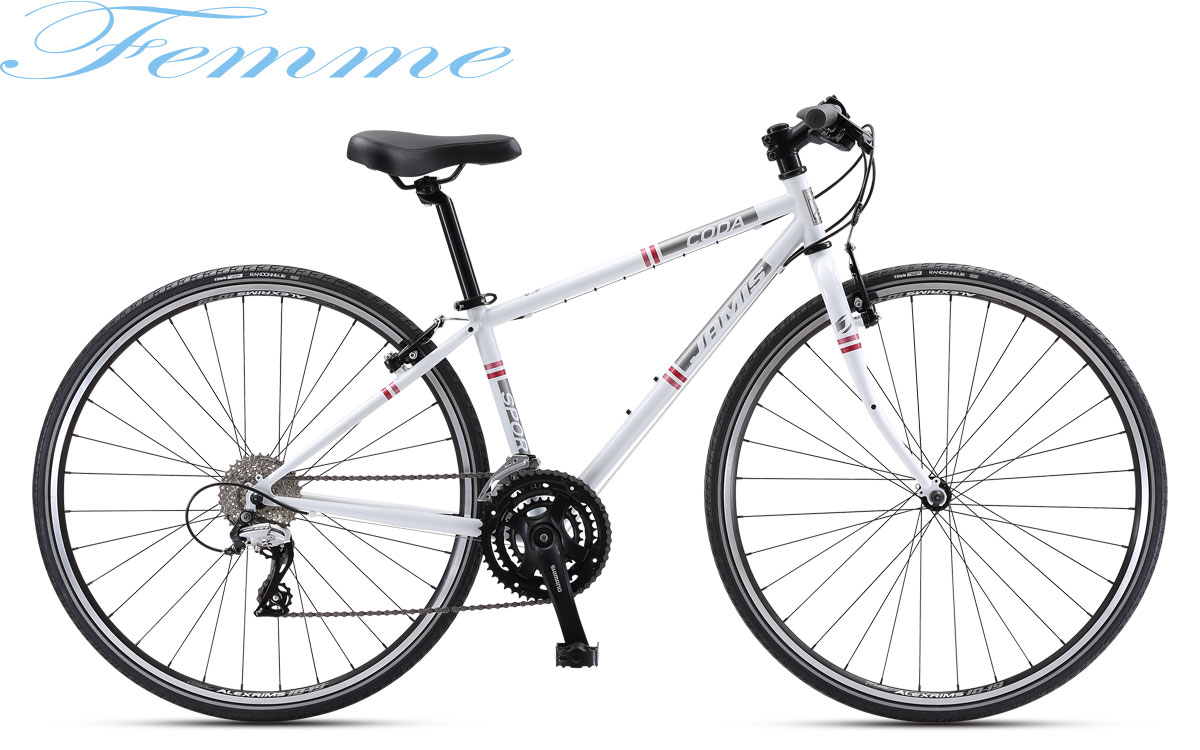

Color Black Ice, Winter Dusk, Thuder Gray, Pearl White or Icy Mint
Weight 12.24kg

※水色表記はFEMME MODEL

FIT & SIZING


ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL CODA SPORT
SIZE 15 17 19 21
inch inch inch inch
ASEAT TUBE 385 422 472 522
BEFFECTIVE TT LENGTH 554 566 577 589
CHEAD ANGLE 72° 72° 72° 73°
DSEAT ANGLE 73° 73° 73° 73°
ECHAIN STAY 430 435 435 440
FWHEEL BASE 1024 1042 1055 1061
GFORK RAKE 50 50 50 50
HBB DROP 58 58 55 55
IHEAD TUBE 116 141 168 189
JSTAND OVER 730 762 802 840
KSTACK 545 569 591 616
LREACH 387 392 396 401
REAR OLD 130 130 130 130
MODEL ALLEGRO SPORT FEMME
SIZE 14 16
cm cm
ASEAT TUBE 335 372
BEFFECTIVE TT LENGTH 520 530
CHEAD ANGLE 70.5ツー 71ツー
DSEAT ANGLE 74.5ツー 74 ツー
ECHAIN STAY 435 435
FWHEEL BASE 1024 1025
GFORK RAKE 50 50
HBB DROP 55 55
IHEAD TUBE 125 135
JSTAND OVER 721 733
KSTACK 533 545
LREACH 370 372
REAR OLD 130 130
