OVERVIEW


RENEGADE EXPLORE


Price¥120,000(本体価格)

  • Size 44 and 48 650B, 51, 54, 56, 58 700c
  • Frame Jamis Size Specific Design frame geometry,6061 aluminum double-butted SST main frame
  • Fork Jamis Adventure ECO monocoque carbon composite
  • Rear Derailleur Shimano Sora RD-R3000GS
  • Crank FSA Vero
  • Wheels WTB i23 STP disc rims with TCS (UST Tubeless Compliant System), 32H, Formula 12mm front and QR rear
  • SSD
  • ECO

SPECIFICATIONS


Model RENEGADE EXPLORE
Price ¥120,000
Frame Jamis Size Specific Design frame geometry, 6061 aluminum double-butted SST main frame, top tube mounted full cable housing, 1.5 - 1 1/8” tapered head tube, 31.8mm seat tube for 27.2 seat post, seat stay
disc brake mounts, replaceable derailleur hanger, 3 waterbottle mounts, rack and fender eyelets, clearance for 700x42c and 650x47c tires.
Fork Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets
Headset FSA Orbit C-40B Internal/External, 1.5 - 1 1/8”
Wheels WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Formula 12mm front and QR rear alloy 6-bolt hubs and 14g stainless steel spokes
Tires X Plor MSO Tubeless, 650 x 36c (44-48) 700 x 36c (51-61), with protection belt and folding bead
Derailleurs Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp
Shift levers Shimano Sora ST-R3000 Dual Control STI, 18-speed
Chain KMC Z99
Cassette Shimano HG400 9-speed, 11-32T
Crankset FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
BB Set FSA sealed cartridge, 68 x 110.5mm
Pedals N/A
Brakeset Tektro Lyra mechanical cable actuated disc brake with 160mm wave rotors and Shimano Sora ST-R3000 levers
Handlebar Ritchey Evomax Comp, 6061 aluminum, 73 reach, 120 drop with 12° flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)
Stem Ritchey 4-Axis 3D forged 6061 alloy, 6° x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61)
Grips Jamis suede tape with gel inserts
Seat Post Ritchey Road, 27.2 x 350mm with cromo seat pin
Saddle Selle Royal Asphalt with integrated clip system
Size 44 and 48 650B, 51, 54, 56, 58, 61(Cream Stout) 700c

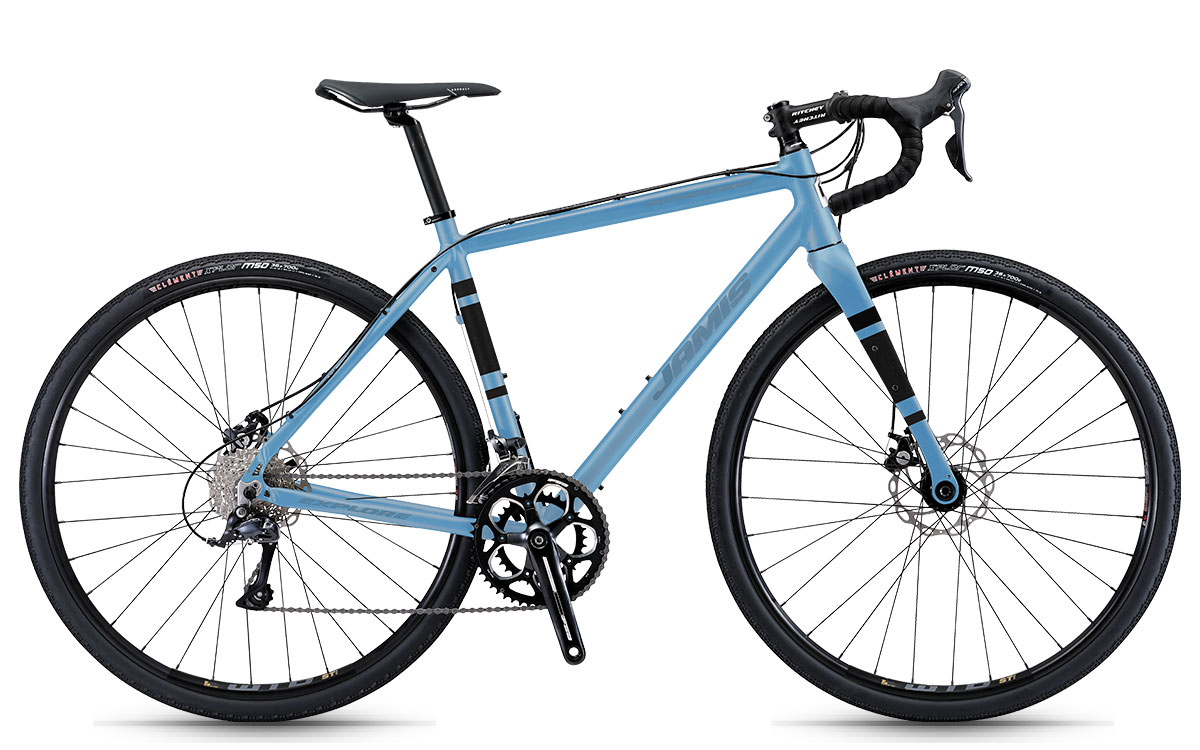

Color Cream Stout, Desert Storm or Winter Dusk
Weight 10.4kg

FIT & SIZING


ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL RENEGADE EXPLORE
SIZE 44 48 51 54 56 58 61
cm cm cm cm cm cm cm
ASEAT TUBE 440 452 452 498 522 543 565
BEFFECTIVE TT LENGTH 502 518 533 551 569 586 601
CHEAD ANGLE 71° 71° 71° 71.5° 71.5° 72° 72.5°
DSEAT ANGLE 73° 73° 73° 73° 73° 73° 73°
ECHAIN STAY 424 424 427 430 430 430 435
FWHEEL BASE 974 991 1004 1022 1041 1051 1066
GFORK RAKE 50 50 53 53 53 50 50
HBB DROP 56 54.5 73.5 72 72 70.5 70.5
IHEAD TUBE 100 125 115 145 175 200 220
JSTAND OVER 713 731 735 775 800 824 845
KSTACK 495 517 539 568 597 622 643
LREACH 350 359 367 376 386 395 404
