Desert Storm Ano Deep Sea

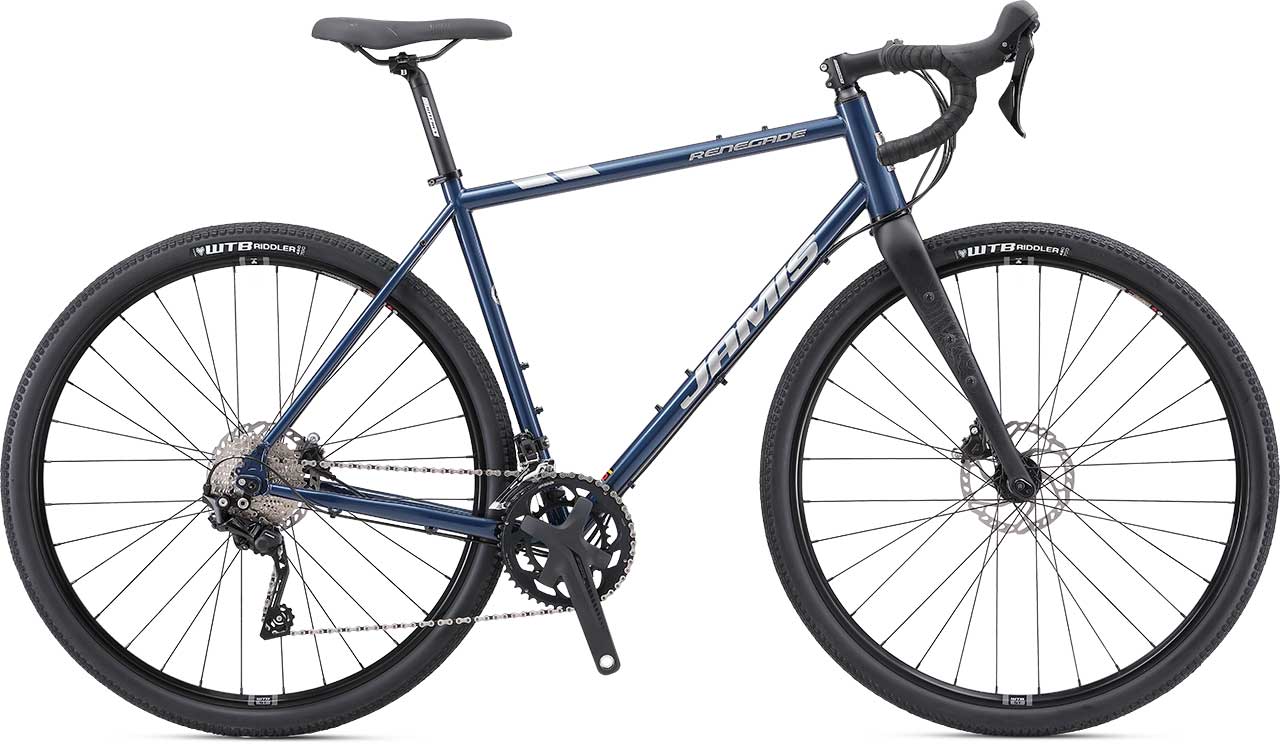

RENEGADE S3

OVERVIEW


RENEGADE S3


Price¥178,000(本体価格)

  • Size 44,48,51,54,56,58
  • Frame UPDATED Jamis Size Specific Design frame geometry, Reynolds 520 double-butted chromoly tubes, 44mm head tube for tapered fork, 12mm Thru-axle, flat mount chain stay disc brake mounts, 3 waterbottle mounts, rack and fender eyelets, clearance for 700x45c and 650x2.0 tires.
  • Fork Adventure ECO monocoque carbon,flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets
  • Rear Derailleur Shimano GRX RX400
  • Crank FSA OMEGA Modular DM MegaExo, 46/30T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58)
  • Wheels WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, alloy 6-bolt hubs, front 12mm/rear 12x142 thru-axle with Switch Lever
  • SSD
  • REINOLDS
  • ECO

SPECIFICATIONS


MODEL RENEGADE S3
Frame UPDATED Jamis Size Specific Design frame geometry, Reynolds 520 double-butted chromoly tubes, 44mm head tube for tapered fork, 12mm Thru-axle, flat mount chain stay disc brake mounts, 3 waterbottle mounts, rack and fender eyelets, clearance for 700x45c and 650x2.0 tires.
Fork Adventure ECO monocoque carbon,flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets
Headset FSA Orbit ITA B Internal/External, 1.5 - 1 1/8”
Wheels WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, alloy 6-bolt hubs, front 12mm/rear 12x142 thru-axle with Switch Lever
Tires Donnelly X Plor MSO ,650 x 36c (44-48) 700 x 36c (51-58), protection belt and folding bead
Derailleurs Shimano GRX RX400
Shiftlevers Shimano GRX RX400
Chain KMC x10
Cassette Shimano 10-speed, 11-36T
Crankset FSA OMEGA Modular DM MegaExo, 46/30T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58)
BB Set FSA BB-4000 MegaExo
Pedals N/A
Brakeset Shimano GRX BR-RX400 flat mount hydraulic disc brakes with resin pads, Shimano 160mm rotors
Handlebar Ritchey Baquiano Comp, 400 (44) 420 (48-51) 440 (54), 460mm(56/58)
Stem Ritchey 4-Axis 70mm (48/51), 80mm (54/56), 100mm (58)
Grips Jamis suede tape with gel inserts
Seat Post Ritchey Road, 27.2 x 300mm with cromo seat pin
Saddle Selle Royal Asphalt with integrated clip system
Weight 11.3kg

FIT & SIZING


ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL RENEGADE S3
SIZE 44(650) 48(650) 51 54 56 58
cm cm cm cm cm cm
ASEAT TUBE 420 452 472 502 524 544
BEFFECTIVE TT LENGTH 505 521 536 554 572 589
CHEAD ANGLE 71° 71° 71° 71.5° 71.5° 72°
DSEAT ANGLE 73° 73° 73° 73° 73° 73°
ECHAIN STAY 424 424 427 430 430 430
FWHEEL BASE 983 996 1021 1030 1045 1054
GFORK RAKE 50 50 53 53 53 50
HBB DROP 54.5 54.5 73.5 72 72 70.5
IHEAD TUBE 112 132 117 144 174 198
JSTAND OVER 703 728 749 780 802 825
KSTACK 505 525 545 575 605 630
LREACH 351 360 369 378 387 396
