HARD LINE A2

HARD LINE A2

OVERVIEW

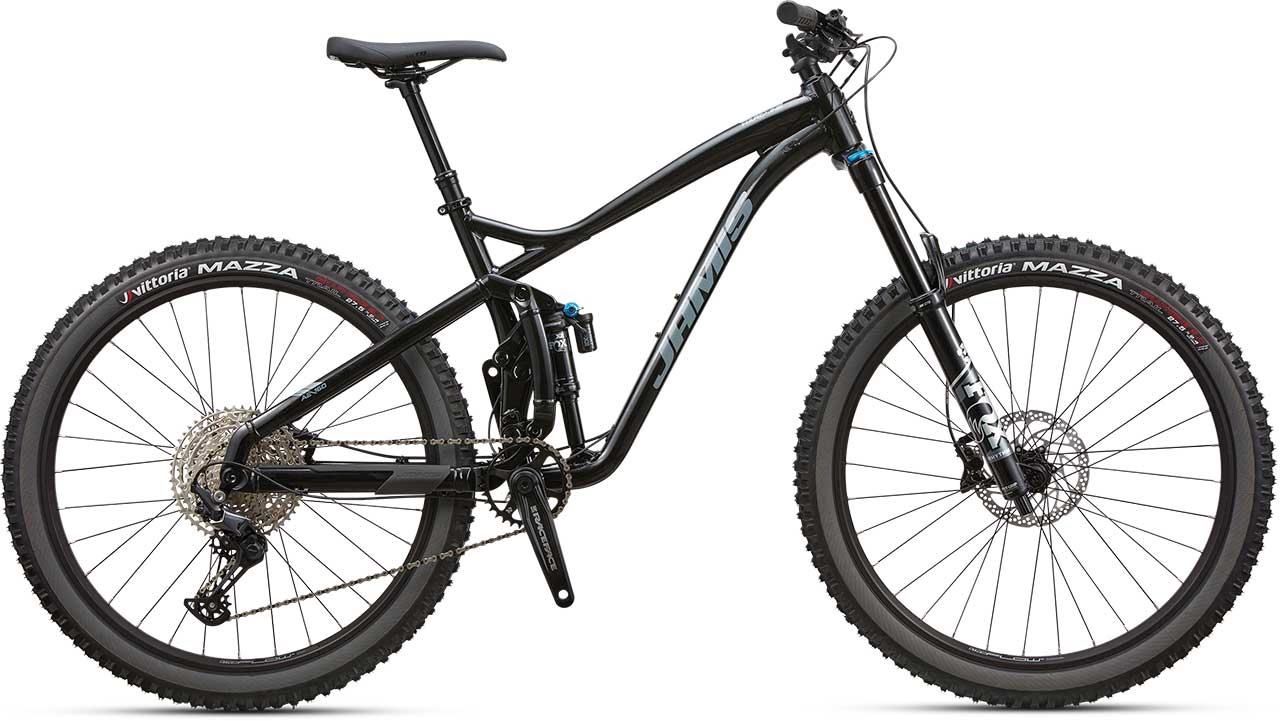

HARD LINE A2

Price¥360,000(本体価格)※受注生産品

  • Size 14.5, 15.5, 17, 19, 21 inch
  • FrameTriple-butted 6061 aluminum, 160mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 - 1 1/8” tapered head tube, 12x148m thru-axle, Shox Deluxe Select R DebonAir shock, 10mm hardware, replaceable derailleur hanger
  • Fork Rock Shox Yari RC 27.5",15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 160mm travel
  • Rear Derailleur SRAM SX Eagle, 12-speed
  • Crank SRAM X1 Eagle, 32T
  • Wheels WTB ST i29 TCS 27.5" tubeless rims, 32H, Formula sealed bearing 15x110mm front & 12x148mm rear 6-bolt disc hubs, stainless spokes
  • 3VO
  • ENDURO Bearing
  • BOOST 148

SPECIFICATIONS


MODEL HARD LINE A2
Frame Triple-butted 6061 aluminum, 160mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 - 1 1/8” tapered head tube, 12x148m thru-axle, Shox Deluxe Select R DebonAir shock, 10mm hardware, replaceable derailleur hanger
Fork Rock Shox Yari RC 27.5",15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 160mm travel
Headset FSA Orbit IS Integrated, 8mm cone spacer
Wheels WTB ST i29 TCS 27.5" tubeless rims, 32H, Formula sealed bearing 15x110mm front & 12x148mm rear 6-bolt disc hubs, stainless spokes
Tires Vittoria Martello 27.5 x 2.35", TNT tubeless
Derailleurs SRAM SX Eagle, 12-speed
Shift levers SRAM SX Eagle, 12-speed
Chain SRAM SX Eagle, 12-speed
Cassette SRAM PG1210, 12-speed, 11-50T
Crankset SRAM X1 Eagle, 32T
BB Set SRAM DUB
Pedals N/A
Brakeset TRP Slate T4 4-piston hydraulic disc, 180mm 6-bolt rotors
Handlebar Race Face Ride, 760mm x 20mm rise, 35mm diameter
Stem Race Face Ride, 50mm extension, 35mm clamp diameter
Grips Jamis Lock-On
Seat Post KS Rage Dropper, Southpaw remote
Saddle WTB Volt
Weight 15.3kg

FIT & SIZING


ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL HARD LINE A2
SIZE 14.5 15.5 17 19 21
inch inch inch inch inch
ASEAT TUBE 369 394 432 483 533
BEFFECTIVE TT LENGTH 560 585 610 635 660
CHEAD ANGLE 65.5° 65.5° 65.5° 65.5° 65.5°
DSEAT ANGLE 74° 74° 74° 74° 74°
ECHAIN STAY 429 429 429 429 429
FWHEEL BASE 1131 1157 1182 1208 1233
GFORK RAKE - - - - -
HBB DROP 13.5 13.5 13.5 13.5 13.5
IHEAD TUBE 90 100 110 120 130
JSTAND OVER 748 751 745 749 765
KSTACK 576 585 595 604 613
LREACH 397 418 439 461 482
