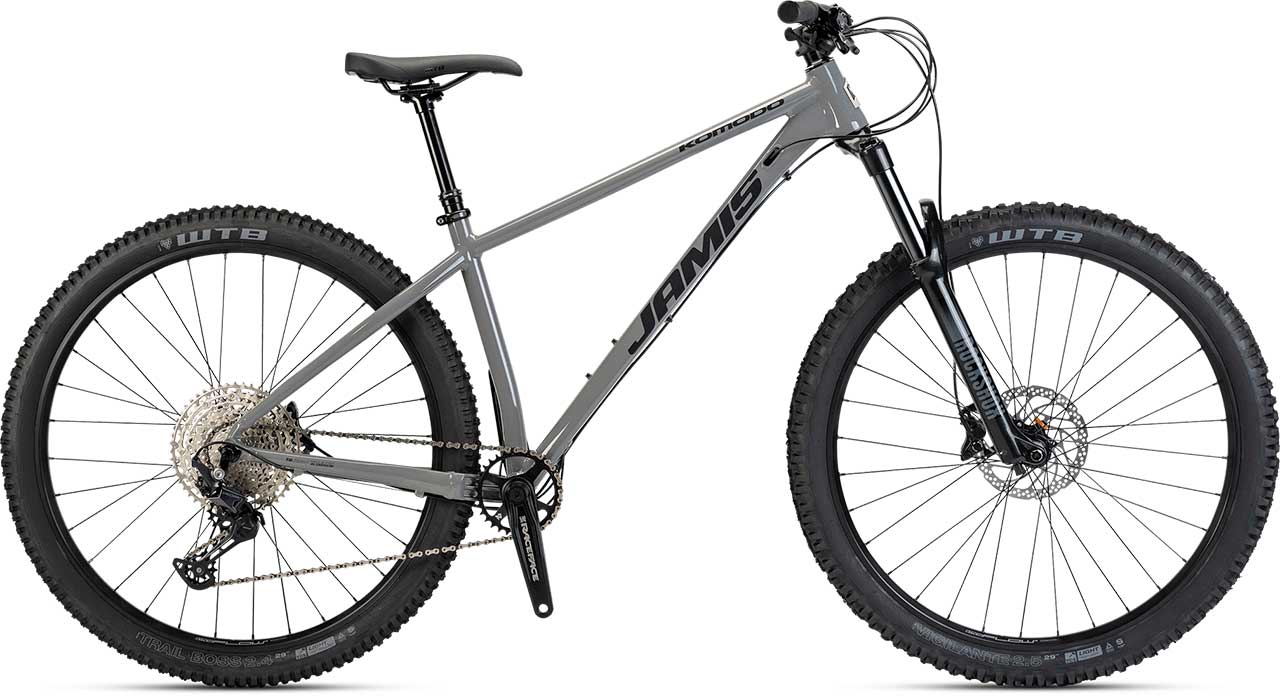

Dragon29のジオメトリーノウハウを生かし6061トリプルバテッドパイプを採用し、フレームの軽さとアルミ特有の不快な硬さを軽減したのがこのKomodo29。登坂性能もSHIMANO 12SpeedワイドギアとKS製ドロッパーシートポストにより非常に高い。 近年のマウンテンバイクでは必須のチューブレスレディにも対応。
Price¥275,000（税込価格）
| MODEL | KOMODO 29 |
|---|---|
| Frame | Triple-butted 6061 aluminum, 1.5 - 1 1/8" tapered head tube, post mount disc brakes, 12x148mm thru-axle dropout internal dropper post routing, replaceable derailleur hanger |
| Fork | Rock Shox 35 Silver TK 29", Solo Air compression,15x110mm axle, 140mm travel |
| Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
| Wheels | Stan's No Tubes Flow D 29" rims, 15x110mm front & 12x148mm rear hubs, stainless spokes |
| Tires | Vittoria Mazza 29 x 2.4" Front & Agarro 29 x 2.35" Rear |
| Derailleurs | Shimano Deore, 12-speed |
| Shiftlevers | Shimano Deore, 1x12-speed |
| Chain | KMC X12, 12-speed |
| Cassette | Shimano M6100, 12-speed, 10-51T |
| Crankset | Race Face Ride, 32T |
| BB Set | Race Face BSA |
| Pedals | N/A |
| Brakeset | Shimano MT420 4-piston hydraulic disc, 180mm/160ｍｍ RT30 rotors |
| Handlebar | Race Face Ride, 35 x 760mm |
| Stem | Race Face Ride, 50mm |
| Grips | Jamis Lock-On |
| Seat Post | KS Rage Dropper, Southpaw remote |
| Saddle | WTB Volt |
| MODEL | KOMODO 29 | ||
|---|---|---|---|
| SIZE | 15 | 17 | 19 |
| inch | inch | inch | |
| ASEAT TUBE | 381 | 432 | 470 |
| BEFFECTIVE TT LENGTH | 597 | 622 | 648 |
| CHEAD ANGLE | 65° | 65° | 65° |
| DSEAT ANGLE | 76° | 76° | 76° |
| ECHAIN STAY | 435 | 435 | 435 |
| FWHEEL BASE | 1192 | 1219 | 1247 |
| GFORK RAKE | - | - | - |
| HBB DROP | 55 | 55 | 55 |
| IHEAD TUBE | 100 | 110 | 120 |
| JSTAND OVER | 744 | 779 | 805 |
| KSTACK | 627 | 636 | 646 |
| LREACH | 440 | 463 | 487 |
