CODA NEO2/Flat Ink CODA NEO2/Monterey Red

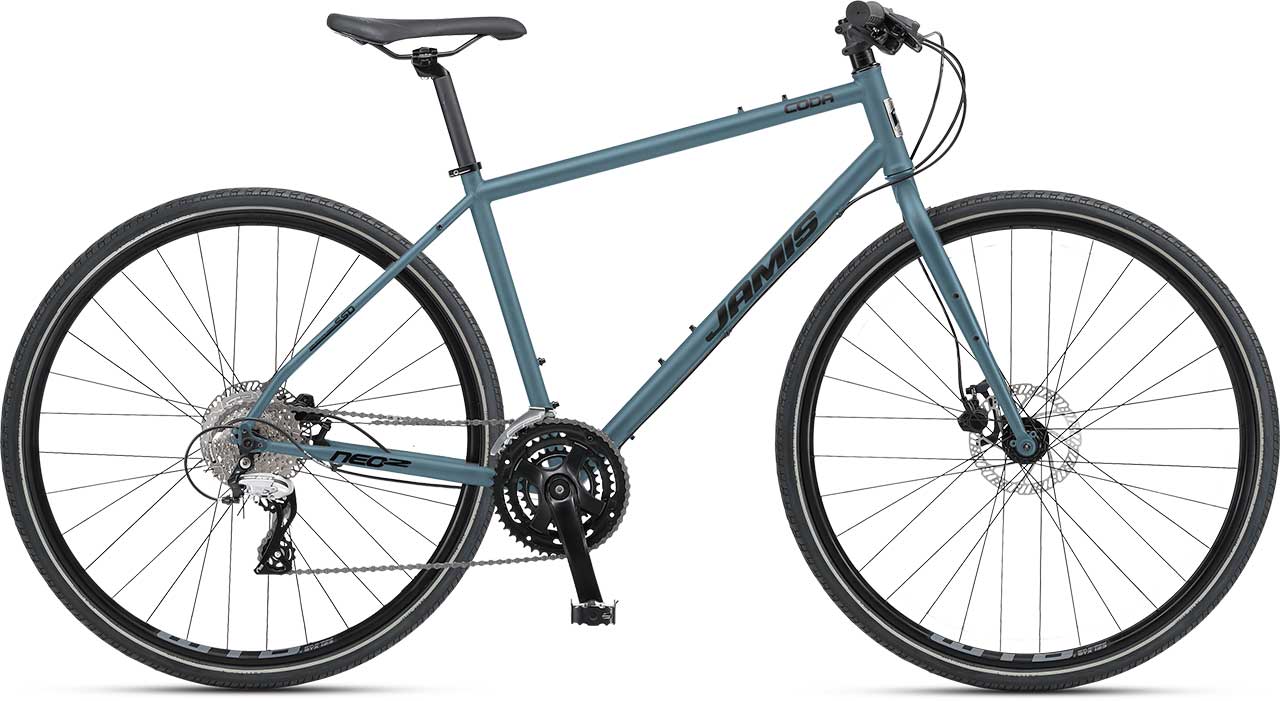

CODA NEO 2

OVERVIEW


CODA NEO 2

Price¥76,800(税込価格)

  • Size 15, 17, 19, 21 inch
  • Frame Size Specific Design frame geometry, 4130 doublebutted chromoly, 44mm Straight head tube, threaded BB shell, 135 OLD QR, chain stay disc brake mounts with DT routing, 4 waterbottle mounts, rack and fender eyelets
  • Fork Jamis Chromoly fork, QR, 45mm crown, IS mount disc brakes, 2 waterbottle mount with fender eyelets,Straight fork
  • Components Shimano Acera RD-M3020-8 rear and FD-TY710 front
  • Wheels WTB STX i23 TCS disc rims, 32H, Alloy 6-bolt sealed bearing rear hub, 14g black stainless steel spokes
  • Tires Vittoria Randonneur Reflex 700 x 40, full black with Reflector stripe
  • Weight NA
  • SSD

SPECIFICATIONS


MODEL CODA NEO2
Price ¥76,800
Frame Size Specific Design frame geometry, 4130 doublebutted chromoly, 44mm Straight head tube, threaded BB shell, 135 OLD QR, chain stay disc brake mounts with DT routing, 4 waterbottle mounts, rack and fender eyelets
Fork Jamis Chromoly fork, QR, 45mm crown, IS mount disc brakes, 2 waterbottle mount with fender eyelets,Straight fork
Headset FSA No,10 1-1/8"
Wheels WTB STX i23 TCS disc rims, 32H, Alloy 6-bolt sealed bearing rear hub, 14g black stainless steel spokes
Tires Vittoria Randonneur Reflex 700 x 40, full black with Reflector stripe
Derailleurs Shimano Acera RD-M3020-8 rear and FD-TY710 front
Shift levers Shimano SL-M315, 16speed
Chain KMC Z8
Cassette SunRace Cassette CSM55 8AU 11-32
Crankset Shimano TY501 46/30T 170mm (15-19),175mm(21)
BB Set Sealed cartridge
Pedals Platform style, steel cage/resin body
Brakeset Tektro ML330, 2 finger, mechanical disc brakes with 160mm rotors and Tektro brake levers.
Handlebar Jamis Riser bar, aluminum 20mm rise, 31.8 x 680 (15-19") 700 (21")
Stem Jamis, 3D forged alloy, 3° rise, Length-60mm (15/17"), 70mm (19/21")
Grips Anatomic double density kraton
Seat Post Jamis alloy micro-adjust, 27.2 x 350mm alloy
clamp with QR seatpin
Saddle Jamis Road with SL top
Size 15", 17",19", 21"
Color Flat Ink or Monterey Red

FIT & SIZING


ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
SIZE 15 17 19 21
inch inch inch inch
ASEAT TUBE 390 430 470 510
BEFFECTIVE TT LENGTH 550 583 600 615
CHEAD ANGLE 71° 71° 71.5° 71.5°
DSEAT ANGLE 74.5° 74.5° 73° 73°
ECHAIN STAY 435 440 445 450
FWHEEL BASE 1047 1086 1088 1109
GFORK RAKE 53 53 50 50
HBB DROP 70 70 65 65
IHEAD TUBE 90 120 150 180
JSTAND OVER 706 740 777 812
KSTACK 531 559 586 614
LREACH 403 428 421 427
REAR OLD 135 135 135 135
