Copper Tone Copper Tone

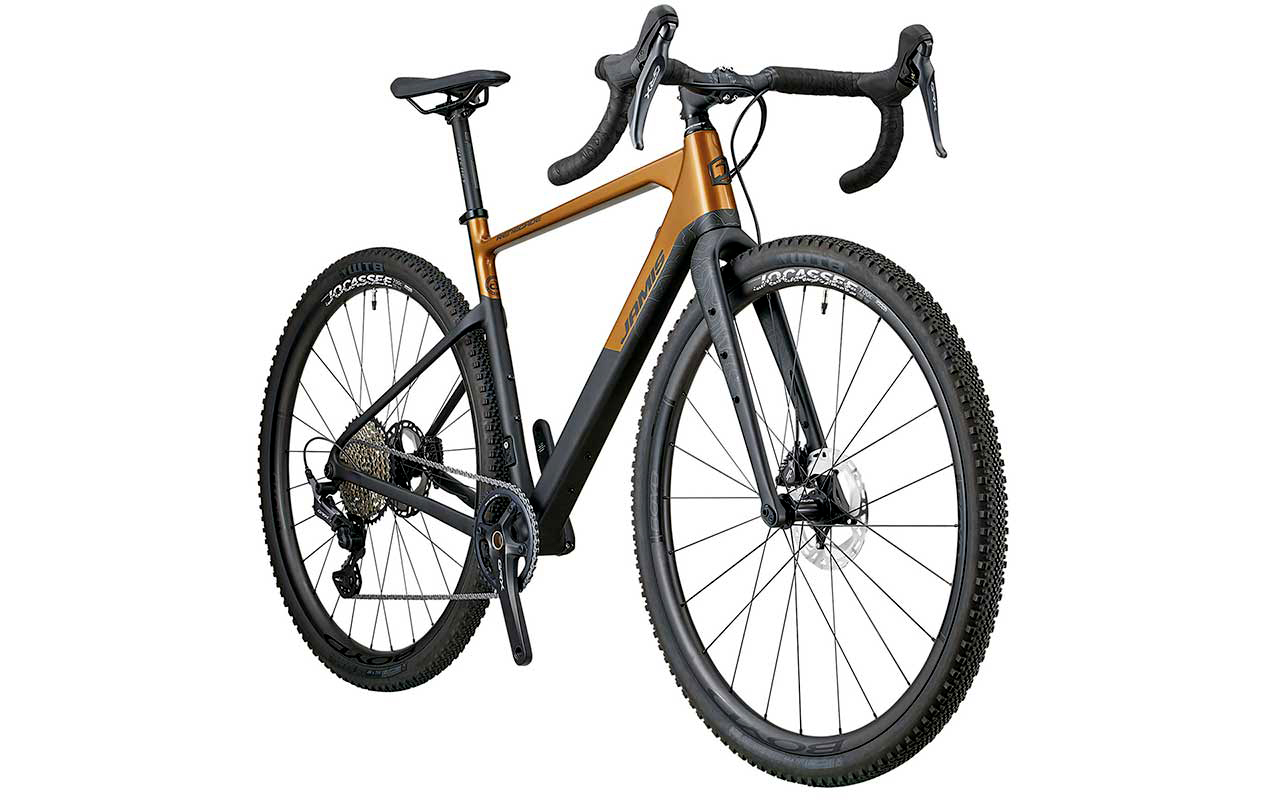

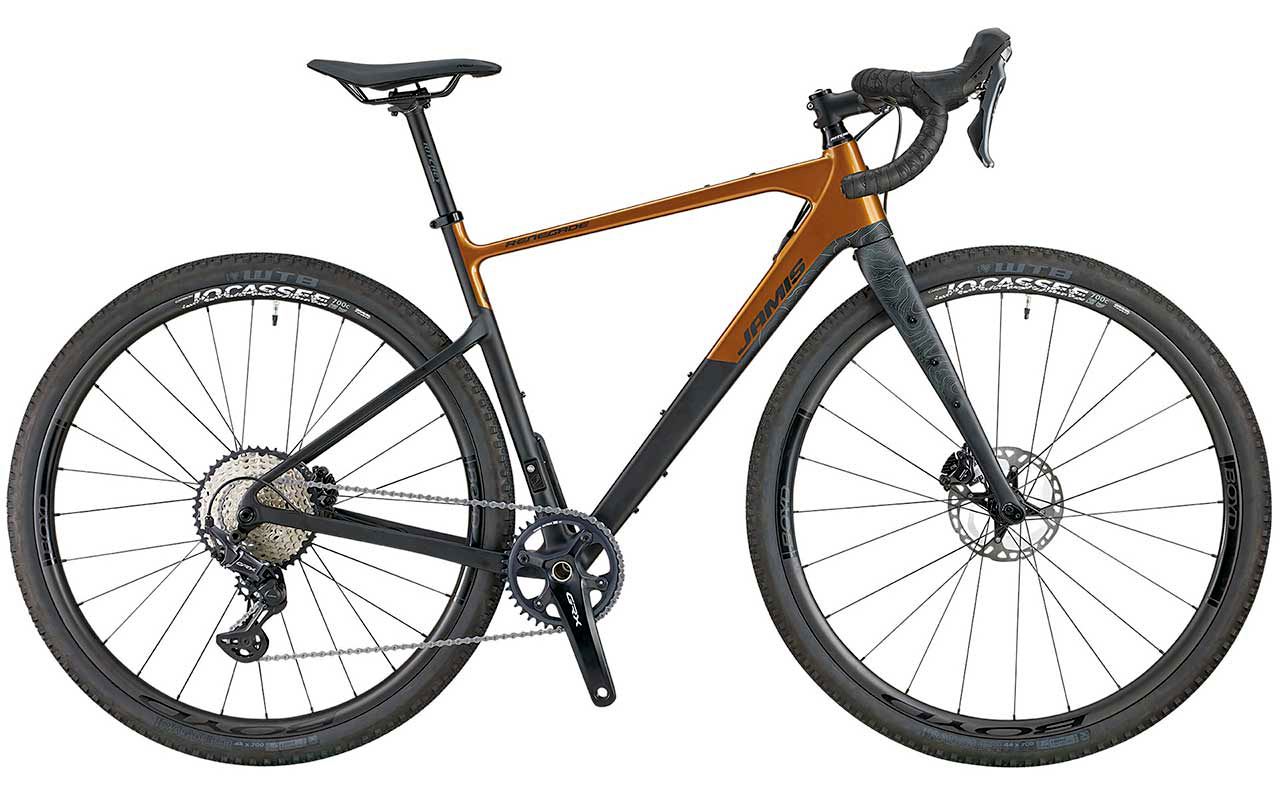

RENEGADE C3

JAMISのレーサーモデルにも採用された実績のあるM30カーボンを使用したフレーム&フォークにBOYD製カーボンホイール、SHIMANO GRX 12speedをアッセンブルしたフラッグシップモデル。グラベルレースも視野に入れたこのモデルは、普段使いをこなせるまさに『オールテレイン』に相応しい1台だ。

OVERVIEW


RENEGADE C3 / Copper Tone


Price¥605,000(税込価格)

  • Size48,51,54cm
  • FrameM30 monocoque carbon fiber frame, tapered head tube for tapered fork, EVO386 carbon BB shell, 12mm Thru-axleflat mount chain stay disc brake mounts, internal dropper post ready, 3 waterbottle mounts
  • ForkMonocoque carbon, 12mm Thru-axle, tapered steerer, flat mount disc brakes, lowrider and 3 water bottle eyelets
  • Components Shimano GRX
  • Brakeset Shimano GRX BR-RX820 ,RT-MT800 160mm rotors
  • WheelsBOYD Jocassee Carbon Tubeless wheelset,front 12mm/rear 12x142 thru-axles with Switch Lever
  • TiresWTB RADDLER Tubeless, 700 x 44c, Dual DNA Compound, Aramid bead
  • WeightN/A
  • SSD
  • NEARNET SPV
  • ECO
  • BB386EVO
  • ACE
  • ENDURO Bearing

SPECIFICATIONS


MODEL RENEGADE C3 / Copper Tone
Frame M30 monocoque carbon fiber frame, tapered head tube for tapered fork, EVO386 carbon BB shell, 12mm Thru-axleflat mount chain stay disc brake mounts, internal dropper post ready, 3 waterbottle mounts
Fork Monocoque carbon, 12mm Thru-axle, tapered steerer, flat mount disc brakes, lowrider and 3 water bottle eyelets
Headset Ritchey Pro Drop-In, sealed bearing with nylon upper compression ring, 1.5 - 1 1/8”
Wheels BOYD Jocassee Carbon Tubeless wheelset,front 12mm/rear 12x142 thru-axles with Switch Lever
Tires WTB RADDLER Tubeless, 700 x 44c, Dual DNA Compound, Aramid bead
Derailleurs Shimano GRX RD-RX822 GS Shadow Plus
Shiftlevers Shimano GRX ST-RX820 Dual Control STI, 12-speed.
Chain KMC x12 EPT Anti-Rust
Cassette Shimano CS-M7100, 12-speed, 10-45T
Crankset Shimano GRX FC-RX820, 40T, 170mm (48/51), 172.5mm (54)
BB Set Enduro 386EVO PressFit for 24mm spindle
Pedals N/A
Brakeset Shimano GRX BR-RX820 ,RT-MT800 160mm rotors
Handlebar Ritchey Ergomax Comp, 6061 aluminum, 31.8 x 420 (48-51) 440mm (54)
Stem Ritchey 4-AXIS 44 Stem 6°x60mm (48-51), 70mm (54)
Tape Velo EVA gel with gel inserts
Seat Post Ritchey Comp Carbon Zero, 27.2 x 400mm
Saddle FIZIK Terra Argo x7 Gravel Saddle

FIT & SIZING


ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL RENEGADE C3
SIZE 48 51 54
cm cm cm
ASEAT TUBE 450 480 510
BEFFECTIVE TT LENGTH 532 547 567
CHEAD ANGLE 71° 71° 71°
DSEAT ANGLE 72° 72° 72°
ECHAIN STAY 435 435 435
FWHEEL BASE 1000 1010 1030
GFORK RAKE 50 50 50
HBB DROP 80 80 80
IHEAD TUBE 90 110 140
JSTAND OVER 731 754 783
KSTACK 527.5 545 575
LREACH 360 370 380
